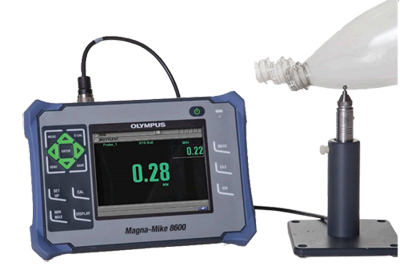

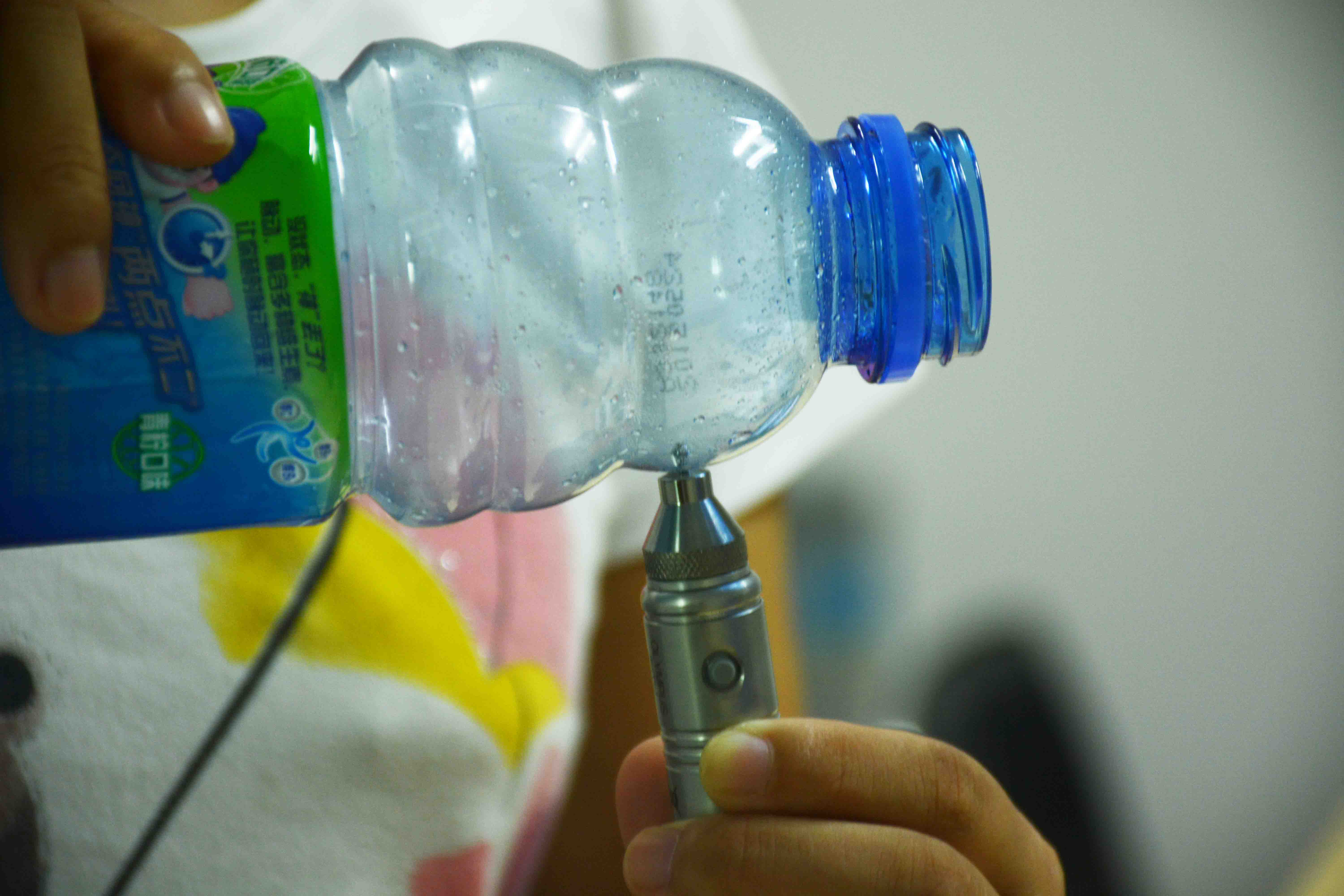

- Magna-Mike - 8600 Holzer thickness gauge is a portable thickness gauge, it uses a simple magnetic method for non ferrous materials for reliable, reproducible and very strong thickness measurement. The operation of Magna-Mike is very simple. When measuring, in the tested material of one side of the press or moving the magnetic probe, in the material on the other side or in the container into a small target ball (or target disk, steel wire). Holzer effect sensor probe tip to the target ball probe distance. The digital form of this measured distance was immediately as to facilitate the reading of the thickness readings are displayed on the screen.
The main characteristics listed below are Magna-Mike8500 better than Magna-Mike8600.
1, two kinds of durable new probe: flat type and right angle type
2, can replace the anti wear cap: standard type and chisel tip type
3, more target selection:
4.76 mm and 6.35 mm target beads
Target steel wire
4, the greater the thickness range, thickness can be measured up to 25.4 mm
5, more color VGA display
6, RS-232, USB and VGA output
7, rapid measurement update rate: 60Hz
8, can edit the password type instrument lock
9, the design conforms to the IP67 standard
10, capacity expansion of the letters of the digital data recorder
11, save the calibration file and call the stored calibration file
12, the new desktop structure, with improved instrument frame
13, the file can be exported to MicroSD card in txt and CSV format.
14, the new annex package (calibration package):
Standard test block, thickness up to 9.1 mm
Extended range, up to 25.4 mm
Garden basin bag
Target steel wire package
15, strip chart view
